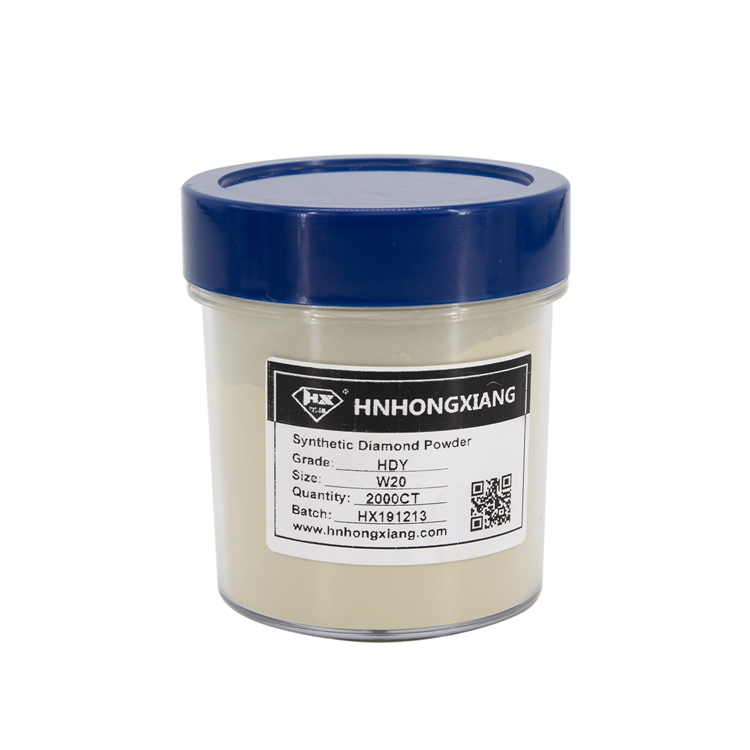

HDY Diamond Micron Powder
HDY -- General grade diamond micron powder for multi-purpose<br> Brand: HNHONGXIANG Diamond Powder<br> Manufactured on the basis of the diamond industry standard, which is the multi-purpose product. Relatively regular crystal form, good hardness and impact resistance, and few impurities, comparatively narrow particle size distribution. It can provide the satisfactory surface finish and material removal rates.
Brief Introduction
| Manufactured on the basis of the diamond industry standard, which is the multi-purpose product. Relatively regular crystal form, good hardness and impact resistance, and few impurities, comparatively narrow particle size distribution. It can provide the satisfactory surface finish and material removal rates.
Usage: for making the resin bond, vitrified bond or electroplated diamond wheels, diamond polishing pads, diamond abrasive Fickert, diamond lappato, or diamond lapping paste, etc. Aim of grinding and polishing glass, ceramic, stone, concrete, gemstone, hard alloy, wire die, sapphire, semiconductors, etc. |
|
 |
 |
Product Size
| Synthetic Diamond Powder Hdy Grade | |||||
| Standard Of China |
Standard Of International |
Mesh | Standard Of China |
Standard Of International |
Mesh |
| W1 | 0-1 | 15,000# | W1.5- | 0-2 | 13,000# |
| W1.5 | 1-2 | 12,000# | W2.5 | 1-3 | 10,000# |
| W3 | 2-3 | 7,000# | W3.5 | 2-4 | 6,500# |
| W3.5 | 2-4 | 6,000# | W4 | 2-5 | 5,000# |
| W5 | 3-6 | 4,000# | W6 | 4-6 | 3,500# |
| W7 | 4-8 | 3,000# | W10 | 4-6 | 3,500# |
| W10 | 5-10 | 2,000# | W10 | 6-12 | 1,800# |
| W12 | 8-12 | 1,600# | W14 | 7-14 | 1,500# |
| W14 | 8-16 | 1,300# | W20- | 10-20 | 1,200# |
| W20 | 12-22 | 1,000# | W20+ | 15-25 | 800# |
| W28 | 20-30 | 700# | W28+ | 22-36 | 600# |
| W40- | 20-40 | 500# | W40 | 30-40 | 450# |
| W40+ | 35-45 | 400# | W50 | 36-54 | |
| W60 | |||||
Product Application
Polishing Applications:
| Standard Of China | size | Mesh | Usage |
| W0.5 | Very fine size | 30000 mesh | Suitable for high-gloss precision polishing of jade, agate, and crystal, smooth polishing surface. (Used with wool grinding head) |
| W1 | Very fine size | 15000 mesh | generally used for fine polishing of amber or jade, with good effect! (Used with wool grinding head) |
| W1.5 | Very fine size | 12000 mesh | For normal jade, jade, agate, or cemented carbide polishing. ( W3.5 and w2.5 are polished and then W1.5 is used to achieve a mirror effect. Use with yellow cloth wheel or white cloth wheel). |
| W2.5 | relatively fine size | 10000 mesh | w2.5 is suitable for polishing the outer surface of hard alloy and other metals. (Used with wool wheel or wool grinding head) |
| W3.5 | relatively fine size | 6500 mesh | for polishing normal jade and jade agate, and it can achieve satisfactory results. It is one of the more used models! (Used with wool wheel or wool grinding head) |
| W5 | relatively fine size | 4000 mesh | Generally used for rough polishing of jade or metal, with high efficiency. (Used with wool wheel) |
| W7 | Slightly rough size | 3000 mesh | Generally used for rough polishing of jade or metal, with high efficiency. (Used with wool wheel) |
| W10 | Rough size | 2000 mesh | Suitable for rough polishing of jade or metal with relatively rough surface, improving efficiency.(Used with wool wheel) |
| W14 | Rough size | 1500 mesh | Suitable for grinding metals, jade or tungsten carbide tools, mould with relatively rough surfaces. (Used with wool wheel) |
| W20 | Very rough size | 1000mesh | Suitable for grinding metals, jade or rough tungsten steel tools with relatively rough surface. (Used with wool wheel) |
| W28 | Very rough size | 700 mesh | Suitable for rough polishing of jade or metal with rough surface, high efficiency. (Used with wool wheel) |
| W40 | Very rough size | 450 mesh | Suitable for polishing hard alloy, alloy steel, high-carbon steel, such as valves, flanges, oil and gas valves, and grinding of gear loaders,etc. |
Production Process
About Us
1. 30 years factory manufacturer of synthetic diamond powder;
2. Strong production capacity. The total output of diamond micron powder is 100 million carats per month;
3. The finest diamond micron powder size can reach 0.1 um;
4. Customizable production according to the different application and industries.
5. Advanced production and quality test equipmnet. Diamond particle automatic settlement machine, Malvern laser particle size analyzer, high power microscope, particle scattered instrument, etc;
6. Set the quality monitoring center in the workshop.
