Resin Bond Diamond Wheels for Grinding Carbide-tipped Circular Saw Blades
Resin Bond Diamond Wheels for Grinding Woodworking Carbide-tipped Circular Saw Blades
Tooth Face sharpening: 4A2, 4V2, 12V2, 12V9, 12A2, 4B2, etc;
Tooth Tops/Backs Grinding: 4A2, 6A9, 12A9, 14AA1, 14A1, 14M1, 14B1, 3M1, 4B1, 11V9, 12V2, 12V9, etc;
Flank Grinding: 4A9, 3A1, 1A1, 11A2, etc;
Grinding Pins for Hollow-tooth Saw Blade: 1A1W, 1A8W
Grinder Machine: Vollmer, Grifo, Walter, AKEMAT, WEINIG, LINSINGER, GOECKEL, etc.
Brief Introduction
Resin Bond Diamond Wheels for Grinding Woodworking Carbide-tipped Circular Saw Blades
Our resin diamond wheel can achieve the qualified cutting edge of blades, which can not only prolong the single life of the carbide saw blade segments, improve the cutting efficiency, but also make the tool regrind repeatedly, making full use of the carbide tip.
Tooth Face Sharpening: 4A2, 4V2, 12V2, 12V9, 12A2, 4B2, etc;
Tooth Tops/Backs Grinding: 4A2, 6A9, 12A9, 14AA1, 14A1, 14M1, 14B1, 3M1, 4B1, 11V9, 12V2, 12V9, etc;
Flank Grinding: 4A9, 3A1, 1A1, 11A2, etc;
Grinding Pins for Hollow-tooth Saw Blade: 1A1W, 1A8W
Grinder Machine: Vollmer, Grifo, Walter, AKEMAT, WEINIG, LINSINGER, GOECKEL, etc
Advantages:
High quality raw material of grinding wheels;
High grinding efficiency;
Excellent polishing result;
Stable performance;
No gap on the cutting edge of blades, no chipping.
Our resin diamond wheel can achieve the qualified cutting edge of blades, which can not only prolong the single life of the carbide saw blade segments, improve the cutting efficiency, but also make the tool regrind repeatedly, making full use of the carbide tip.
Tooth Face Sharpening: 4A2, 4V2, 12V2, 12V9, 12A2, 4B2, etc;
Tooth Tops/Backs Grinding: 4A2, 6A9, 12A9, 14AA1, 14A1, 14M1, 14B1, 3M1, 4B1, 11V9, 12V2, 12V9, etc;
Flank Grinding: 4A9, 3A1, 1A1, 11A2, etc;
Grinding Pins for Hollow-tooth Saw Blade: 1A1W, 1A8W
Grinder Machine: Vollmer, Grifo, Walter, AKEMAT, WEINIG, LINSINGER, GOECKEL, etc
Advantages:
High quality raw material of grinding wheels;
High grinding efficiency;
Excellent polishing result;
Stable performance;
No gap on the cutting edge of blades, no chipping.
| Resin Bond Diamond Wheels for Grinding Woodworking Carbide-tipped Circular Saw Blades | ||||

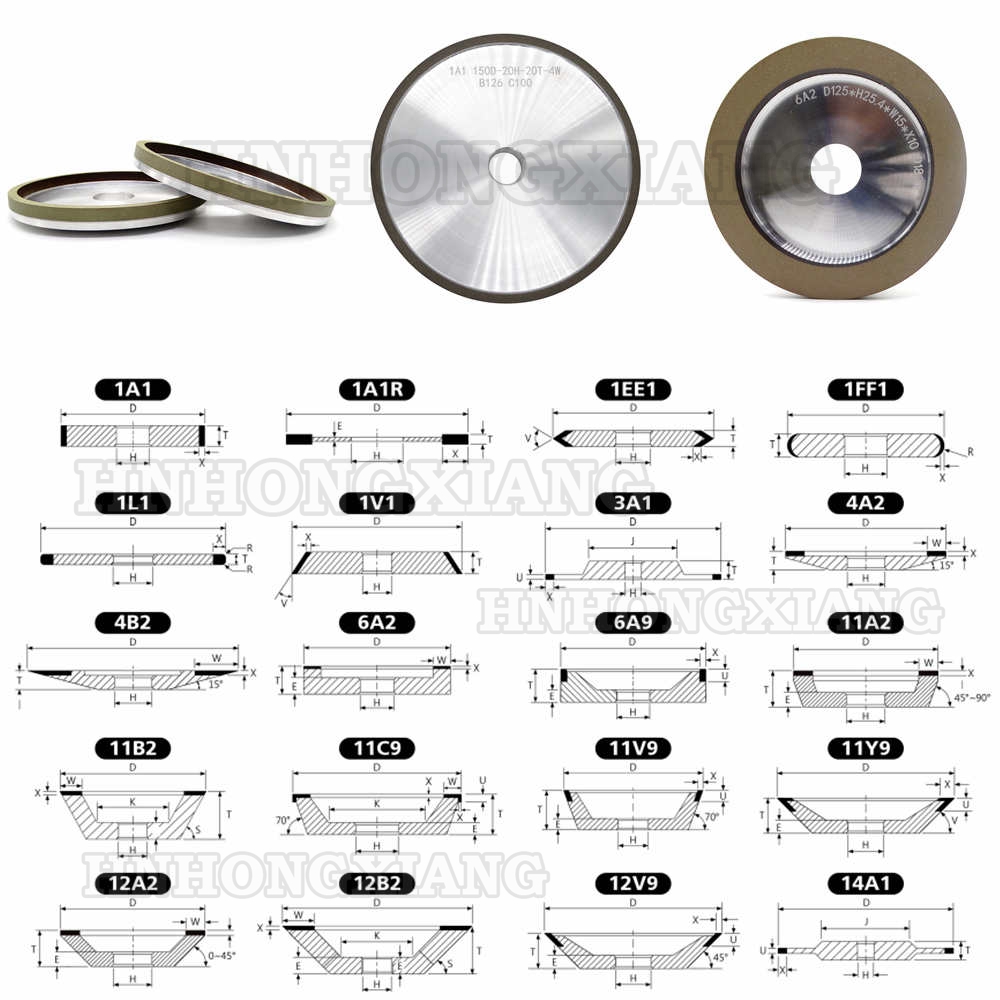

| Grinding Area | Shape | Size | Mesh | Shape Drawings |
| Tooth Face Grinding |
4A2 | D100/125*T10*H20*X5*U2 | D170/200 D230/270 DoubleGrit: 180# 400# |
 |
| 4V2 | D100*T12*H32*X3*U2 | D170/200 D230/270 |
 |
|
| 12V2 | D125/150*T13*H32*X2*U2 | D200/230 D230/270 D325/400 |
 |
|
| 12A2 | D125/150*T13*H32*X2/4*U2 | D200/230 D230/270 D325/400 |
 |
|
| Grinding Pins for Hollow tooth Sharpening | 1A1W | D6.5/7*L45*T6*I12*U35 | D200/230 |  |
| Tooth Tops Grinding |
4A2 | D100*W4*X3*H25 | D46/D64 | |
| 14B1 | D127*U5*X7*V15*H32 | D46/D54/ D107/D126 |
 |
|
| 14A1 | D150*U5*X8*H32 | D64 |  |
|
| 14M1 | D150*U5*X8*U2.5*V5°*H32 | D46/D107 |  |
|
| Flank Grinding |
3A1 | D100*T14*H32*X6*U4 | D140/170 D325/400 |
 |
| 1A1 | D125*W8*X15*H20 | D64 |  |
|
| 11A2 | D75/100*W4-6*T3-5 | #100 - 230 #300 - 600 |
 |
|
| Types and sizes of resin diamond wheels are can be customized. | ||||
Product Size
How to Order Grinding Wheels
1. Type of workpiece material
2. Grinder model
3. Grinding part
4. Workpiece finish requirements
5. Grinding wheel speed, cutting speed, and grinding allowance;
6. Diameter, hole size, thickness and diamond layer, etc.
We can provide one-stop all types diamond CBN grinding wheels products procurement services for the grinding and resharpening needs of various woodworking tools:
Carbide circular saw blades/PCD saw blades;
High Speed Steel or Solid Carbide Circular Saw Blades;
Chainsaw Blades;
Woodworking bandsaws;
Woodworking mills, milling blades, formed cobalt mills;
Planers, finger joints, woodworking rotary tools;
Carbide mills and carbide drill, etc.
Milling inserts, profiled cobalt cutters, and planers are ground with 11V9 and 12V9 resin diamond CBN grinding wheels;
Finger joint knives, disc-type finger joint knives, and inlaid finger joint knives, the front corners are sharpened with the bowl-type grinding wheels, and the rear corners are sharpened with the cup-type grinding wheels.;
Solid carbide milling cutters and drills use matching five-axis resin bond diamond grinding wheels.
1. Type of workpiece material
2. Grinder model
3. Grinding part
4. Workpiece finish requirements
5. Grinding wheel speed, cutting speed, and grinding allowance;
6. Diameter, hole size, thickness and diamond layer, etc.
We can provide one-stop all types diamond CBN grinding wheels products procurement services for the grinding and resharpening needs of various woodworking tools:
Carbide circular saw blades/PCD saw blades;
High Speed Steel or Solid Carbide Circular Saw Blades;
Chainsaw Blades;
Woodworking bandsaws;
Woodworking mills, milling blades, formed cobalt mills;
Planers, finger joints, woodworking rotary tools;
Carbide mills and carbide drill, etc.
Milling inserts, profiled cobalt cutters, and planers are ground with 11V9 and 12V9 resin diamond CBN grinding wheels;
Finger joint knives, disc-type finger joint knives, and inlaid finger joint knives, the front corners are sharpened with the bowl-type grinding wheels, and the rear corners are sharpened with the cup-type grinding wheels.;
Solid carbide milling cutters and drills use matching five-axis resin bond diamond grinding wheels.
Product Application
