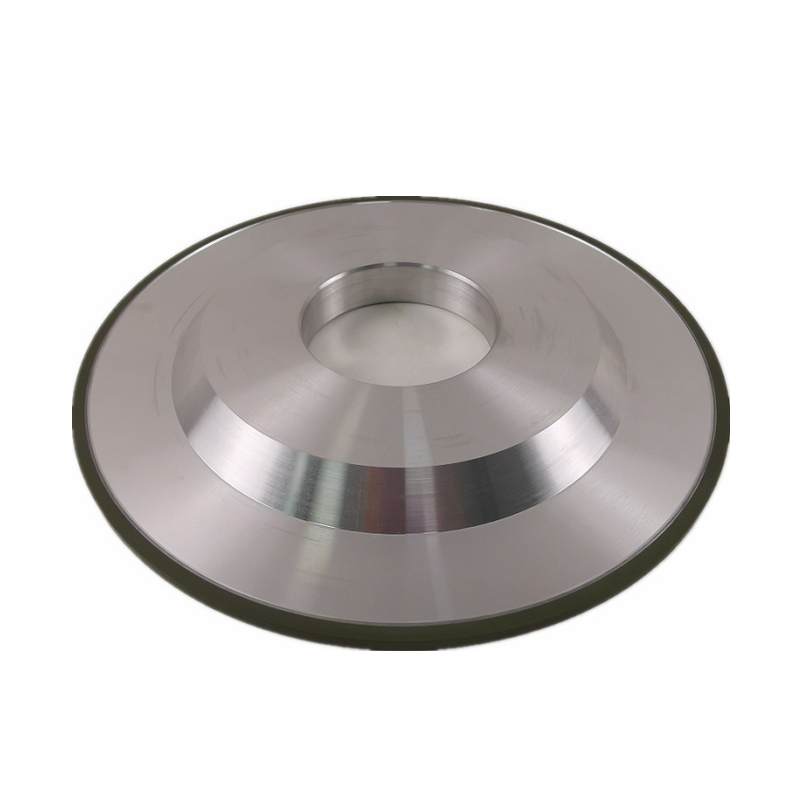

Resin Bond Diamond CBN Grinding Wheels for End Mills
Resin bond diamond CBN grinding wheels are suitable for grinding and resharpening of carbide or high speed steel end mills, which is designed for end mill manufacturers or resharpening service providers. Grinding wheels are ideal for CNC end mill grinders and universal tool grinding machines. Usage of Resin Grinding Wheels: flute grinding, gash grinding, OD relief and end teeth grinding.
Brief Introduction
|
How To Processing the Endmill?  |
|||
| Resin Diamond CBN Wheels for Endmills Flute Grinding |
Resin Diamond CBN Wheels for EndMills OD Relief |
Resin Diamond CBN Wheels for EndMills Gash Grinding |
|
| Wheel Shaped | 1A1,1V1,3V1,3V1, 14A1,14F1,14V1,4A9 |
6A9,11V9,12A2,12V9,12V5,6V5 | 1A1,1V1,3V1,12V9,14V1 |
| Wheel Grit Size | Carbide : D46-D91 HSS : B64-B107 |
Carbide : D20-D46 HSS : B46-B91 |
Carbide : D30-D76 HSS : B76-B107 |
:Resin Bond Diamond&cbn Grinding Wheel For Drill Bit Click to jump
Product Size
Commonly used grinding wheel specifications for CNC multi-axis linkage tool grinders |
|||
| Product Name | Product Appliaction | Product Photo | Product Drawing |
| 1A1 Shaped Resin Bond Diamond&cbn Grinding Wheel |
grinding the main groove, back grinding,grinding ligaments and grinding outer circles, etc. |
 |
 |
| 1V1 Shaped Resin Bond Diamond&cbn Grinding Wheel |
grinding main grooves, thinning tooth ends,drilling tip grinding, etc. |
 |
 |
| 14A1 Shaped Resin Bond Diamond&cbn Grinding Wheel |
grinding main groove, back grinding, ligament grinding and outer circle grinding, etc. |
 |
 |
| 11V9 Shaped Resin Bond Diamond&cbn Grinding Wheel |
the first and second back angles; external cylindrical grinding, small tooth gap grinding,end tooth and circumferential spiral tooth ligament grinding, etc. |
 |
 |
| 12V9 Shaped Resin Bond Diamond&cbn Grinding Wheel |
grinding tooth gap, groove grinding, relief grinding, reducing edge grinding, etc. |
 |
 |
|
6V5 and 12V5 grinding wheels |
mainly grinding the first back angle,relief grinding, variable diameter grinding, etc. |
/ | / |
|
11A2 and 12A2 grinding wheels |
the first and second back angles of peripheral teeth or end teeth; |
/ | / |
Grinding Wheel Size
| Type | D (mm) | T (mm) | X (mm) | H (mm) | V |
| 1A1 | 75 | 10 | 5 | 20 | |
| 100 | 6, 10, 12 | 5, 10 | 20 | ||
| 125 | 10, 12, 16 | 10 | 20 | ||
| 150 | 12 | 10 | 20 | ||
| Type | D (mm) | T (mm) | X (mm) | H (mm) | V |
| 1V1 | 75 | 10 | 5 | 20 | 45 |
| 100 | 10, 15 | 5 | 20 | 45 | |
| 125 | 6, 10, 15 | 5 | 20 | 45 | |
| 150 | 12 | 5 | 20 | 45 | |
| Type | D (mm) | U (mm) | X (mm) | H (mm) | |
| 14F1 | 100 | 4 | 6 | 20 | |
| 125 | 3 | 5 | 20 | ||
| 150 | 1,5 | 5, 7 | 20 | ||
| Type | D(mm) | T(mm) | X(mm) | H(mm) | |
| 11V9 | 75 | 30 | 10 | 20,31.75 | |
| 100 | 35 | 10 | 20,31.75 | ||
| 125 | 35 | 10 | 20,31.75 | ||
| Type | D (mm) | T(mm) | X (mm) | H(mm) | |
| 12V9 | 75 | 20 | 10 | 20, 31.75 | |
| 100 | 25 | 10 | 20, 31.75 | ||
| 125 | 25 | 10 | 20, 31.75 | ||
| 150 | 25 | 10 | 20, 31.75 |
Product Application
|
Diamond&CBN Grinding Wheel for High-precision milling cutters, drills, hobs, slot cutters, etc. for CNC machine tools, including solid carbide twist drills, step drills, keyway milling cutters, end mills, ball end mills.   |
|
 |
|
 |
|
 |
Production Process
