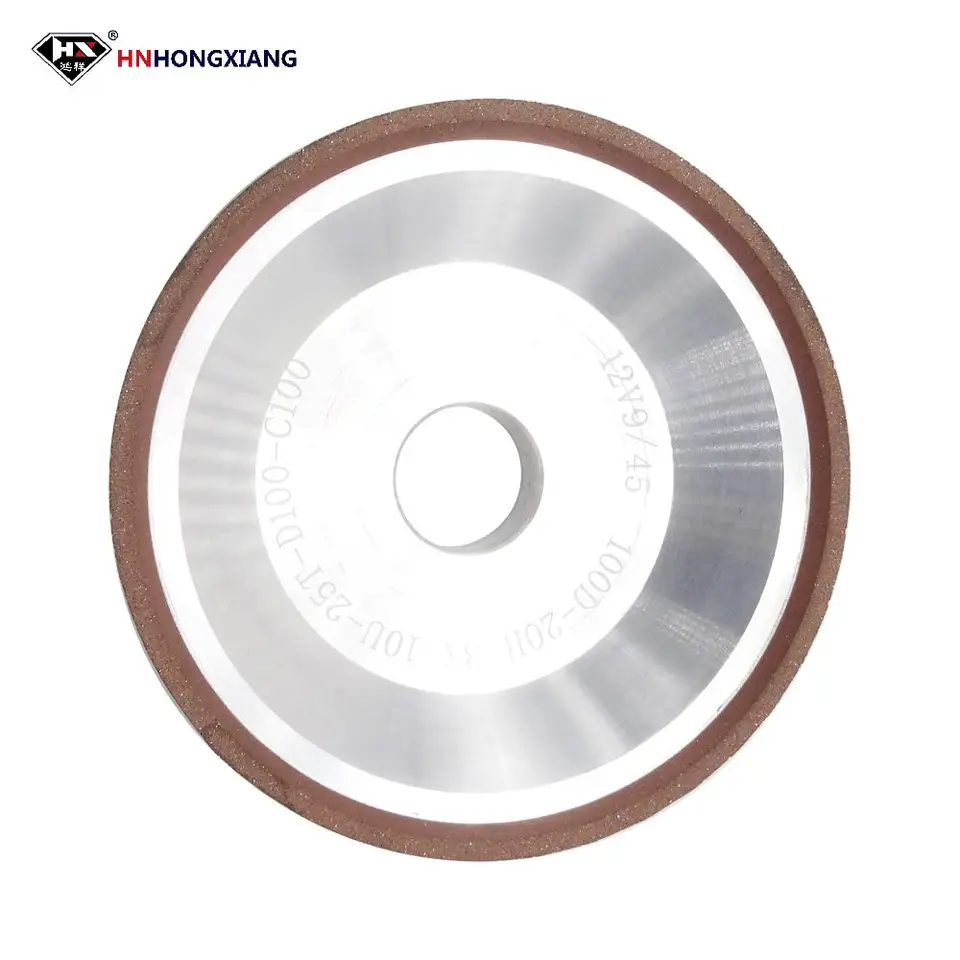

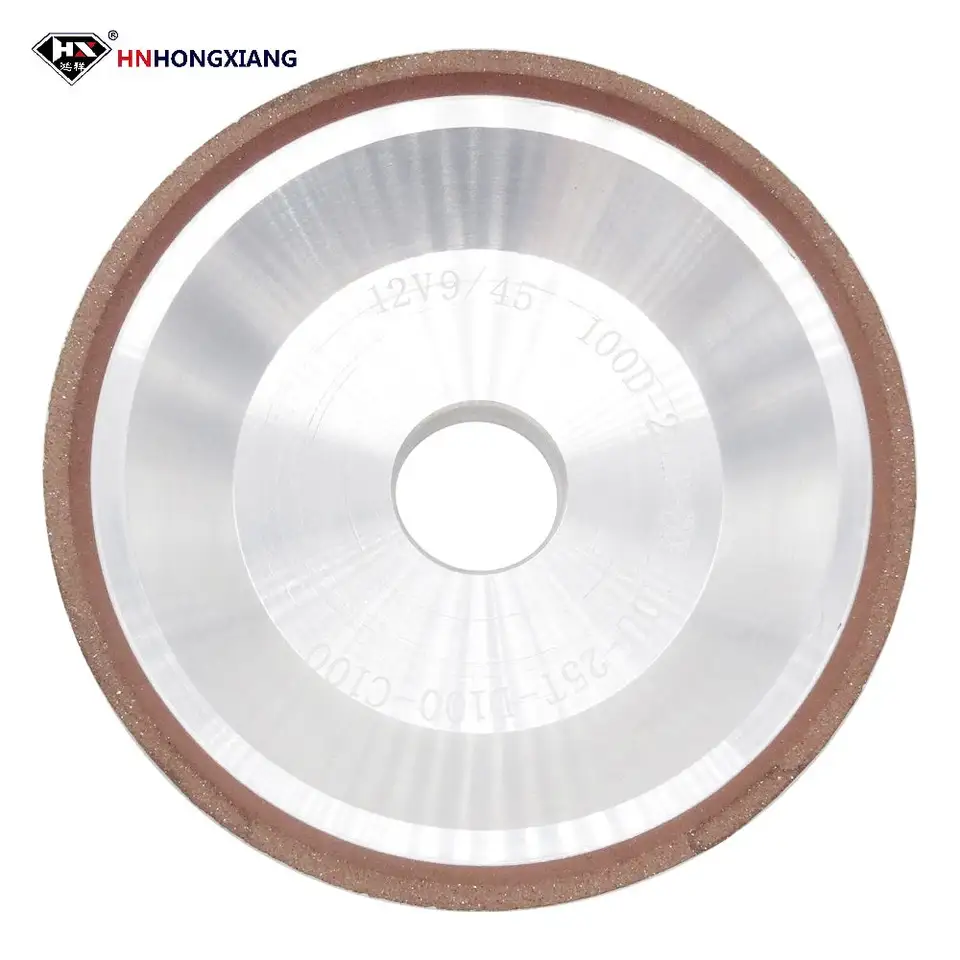

12V9 Resin Bond Diamond&CBN Grinding Wheel
12V9 Diamond wheels manufactured with synthetic or natural diamond in a resin or metal bond. These wheels provide high cut rates in wet or dry applications for grinding carbides, ceramics, and nonferrous metals. Fluting activities on various machines are also performed with this tool. There are several grit sizes available.
Brief Introduction
 |
Product Name | 12V9 Resin Bond Grinidng Wheel |
| Material | Diamond / Cbn | |
| Shaped | 12V9 Shaped (Bowl Shaped) | |
| Usage | Circular Saw Blade / Endmill/Drill | |
| Application | Cnc Machine | |
| Customized | Can be customized | |
| Payment Methods | TT / Paypal / Alibaba | |
| Delivery Time | 5-10Workdays | |
| Moq | 1pc / Paper Box |
Product Size
| 12V9 Resin Bond Diamond&Cbn Grinding Wheel Szie | |||||
| Diameter (D) |
Hole (H) |
Thickness (T) |
Abrasive Width (W) |
Abrasive Thickness (U) |
Drawing |
| 75mm | 20mm | 20mm | 4mm | 11mm |  |
| 75mm | 20mm | 25mm | 3mm | 10mm | |
| 100mm | 20mm | 20mm | 4mm | 11mm | |
| 100mm | 25mm | 11mm | 3mm | 5mm | |
| 110mm | 20mm | 18mm | 5mm | 10mm | |
| 125mm | 31.75mm | 25mm | 3mm | 10mm | |
| 125mm | 32mm | 13mm | 2.5mm | 4mm | |
| 125mm | 32mm | 18mm | 2.5+2.5mm | 6mm | |
| 150mm | 20mm | 25mm | 4mm | 10mm | |
| 150mm | 25.4mm | 25mm | 4mm | 6mm | |
| If you need to customize other models of 12V9 resin grinding wheels, you can send information to: admin@hnhongxiang.com |
|||||
Product Application
| Application | Application Photo |
| 12V9 Resin Bond Diamond CBN Grinding Wheel for carbide and HSS saw tooth face and back grinding. |  |
| 12V9 Resin Bond Diamond CBN Grinding Wheel For Endlill And Drill Grinding |  |
| 12V9 Resin Bond Diamond CBN Grinding Wheel Mainly used for grinding high and hard alloys, non-metallic materials, cutting hard and brittle, hard alloys, etc. |  |
