Glass Diamond Grinding Polishing Wheels for Double Edging Machine
Metal Bond Diamond Grinding Wheels--Rough Grinding
( full segment, inner segment, outer segment, cup continuous)
'
Resin Bond Diamond Grinding Wheels-Fine Grinding
( cup shape continuous)
Glass Polishing Wheels
( BK, CE, 10S, X5000 )
Brief Introduction
Glass Diamond Grinding Polishing Wheels for Double Edging Machine
| Product Name | Size(mm) | Hole Size(mm) | Mesh |
| Metal bond glass diamond grinding wheel ( Full segmeted) |
130*10*10 | 12/50 | 80#; 100#, 140#; 180#, 200# |
| 150*10*10 | 12/50 | 80#; 100#, 140#; 180#, 200# | |
| 150*15*10 | 12/50 | 80#; 100#, 140#; 180#, 200# | |
| 175*12*10 | 12/50 | 80#; 100#, 140#; 180#, 200# | |
| 175*15*10 | 12/50 | 80#; 100#, 140#; 180#, 200# | |
| Metal bond glass diamond grinding wheel ( Out segmeted) |
130*10*10 | 12/50 | 100#; 140#; 180#; 230# |
| 150*10*10 | 12/50 | 100#; 140#; 180#; 230# | |
| 150*8*10 | 12/50 | 100#; 140#; 180#; 230# | |
| 150*6*12 | 12/50 | 100#; 140#; 180#; 230# | |
| 175*8*10 | 12/50 | 100#; 140#; 180#; 230# | |
| Metal bond diamond grinding wheel for glass ( Inner segmeted) |
130*10*10 | 12/50 | 140#; 170# |
| 150*10*10 | 12/50 | 140#; 170# | |
| 150*8*10 | 12/50 | 140#; 170# | |
| 150*6*12 | 12/50 | 140#; 170# | |
| 175*8*10 | 12/50 | 140#; 170# | |
| Metal bond diamond grinding wheel for glass ( Cup shape continuous type) |
130*8*8 | 12/50 | 80#; 100#, 140#; 180#, 240# |
| 130*8*10 | 12/50 | 80#; 100#, 140#; 180#, 240# | |
| 150*8*8 | 12/50 | 80#; 100#, 140#; 180#, 240# | |
| 150*8*10 | 12/50 | 80#; 100#, 140#; 180#, 240# | |
| 100*10*10 | 12/50 | 80#; 100#, 140#; 180#, 240# | |
| 130*10*10 | 12/50 | 80#; 100#, 140#; 180#, 240# | |
| 150*10*10 | 12/50 | 80#; 100#, 140#; 180#, 240# | |
| 150*10*12 | 12/50 | 80#; 100#, 140#; 180#, 240# | |
| 175*10*10 | 12/50 | 80#; 100#, 140#; 180#, 240# | |
| 175*10*12 | 12/50 | 80#; 100#, 140#; 180#, 240# | |
| Resin bond glass diamond grinding wheel ( Cup shape continuous type) |
130*10*10 | 12/50 | 180#, 240#, 320# |
| 150*10*10 | 12/50 | 180#, 240#, 320# | |
| 130*15*10 | 12/50 | 180#, 240#, 320# | |
| 130*15*15 | 12/50 | 180#, 240#, 320# | |
| 150*15*10 | 12/50 | 180#, 240#, 320# | |
| 150*15*15 | 12/50 | 180#, 240#, 320# | |
| 175*15*10 | 12/50 | 180#, 240#, 320# | |
| 175*15*15 | 12/50 | 180#, 240#, 320# | |
| 175*15*15 | 12/50 | 180#, 240#, 320# | |
| BK glass polishing wheel | 130*60*35 | 40#, 60#, 120#, 180# | |
| 150*70*40 | 40#, 60#, 120#, 180# | ||
| CE polishing wheel for glass | 150*70*40 | ||
| 10S glass polishing wheel | 130*60*35 | 46#, 60#, 80# | |
| 150*70*30 | 46#, 60#, 80# | ||
| 150*70*40 | 46#, 60#, 80# | ||
| X5000 wheel for glass polishing | 150*70*40 |
Product Size

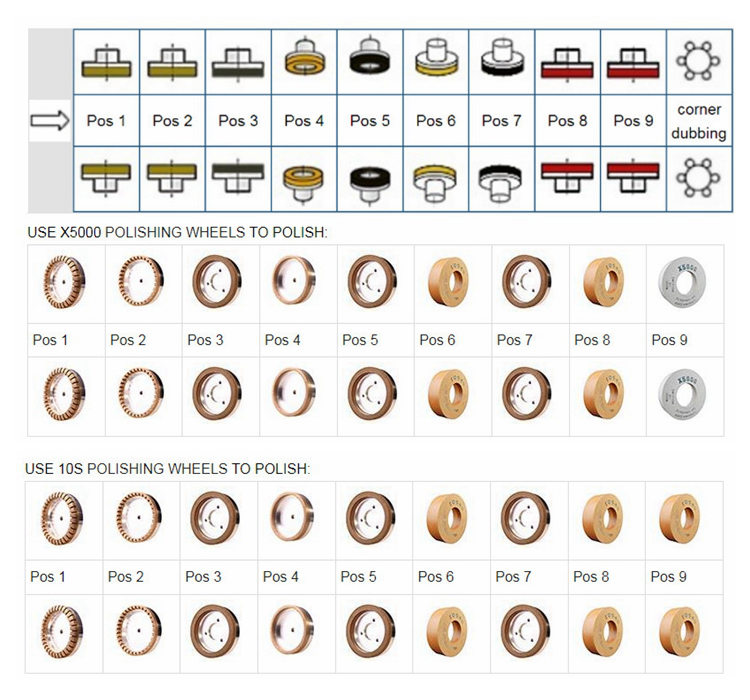

Matching Grinding Wheels for Different Bilateral Glass Edging Machines
1. 18 grinding head glass double machine grinding wheel combination
2. 20 grinding heads double line edging machine glass grinding wheels combination
3. 22 grinding heads glass bilateral edger machine grinding wheels combination
3. 26 grinding heads bilateral edging machine glass diamond grinding wheels combination
1. 18 grinding head glass double machine grinding wheel combination
2. 20 grinding heads double line edging machine glass grinding wheels combination
3. 22 grinding heads glass bilateral edger machine grinding wheels combination
3. 26 grinding heads bilateral edging machine glass diamond grinding wheels combination
Product Application
Different Glass Fields for Grinding Wheels Application
Architectural glass, balcony glass, canopies glass, glass partitions;
Home glass, glass doors, glass tableware, bathroom mirror, shower glass, furniture glass, glass kitchen splashbacks, lighting glass;
Art glass, decorative glass;
Flat glass; automotive glass;
Antique glass, hollow glass, technical glass, float glass, insulating glass, laminated glass, wired glass, toughened glass, solar control glass, sound insulation glass, patterned glass, integrated glass, privacy glass, glass substrate, solar panel, etc.
Architectural glass, balcony glass, canopies glass, glass partitions;
Home glass, glass doors, glass tableware, bathroom mirror, shower glass, furniture glass, glass kitchen splashbacks, lighting glass;
Art glass, decorative glass;
Flat glass; automotive glass;
Antique glass, hollow glass, technical glass, float glass, insulating glass, laminated glass, wired glass, toughened glass, solar control glass, sound insulation glass, patterned glass, integrated glass, privacy glass, glass substrate, solar panel, etc.
